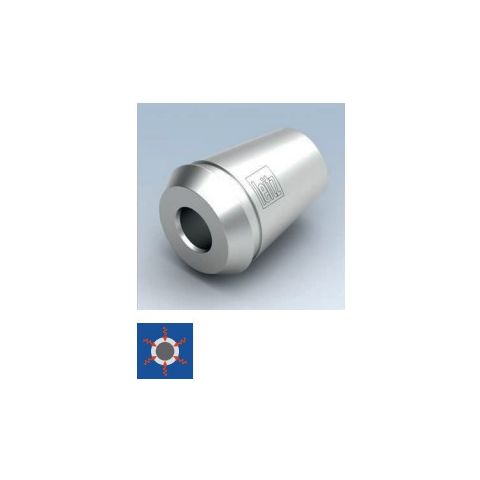

Shrink collet ThermoGrip®, Type TER, DIN ISO 15488
In stock
SKU
sctgttdi
Application:
High precision tool chuck for clamping shank tools by thermal shrinking. Has the
highest stability and rigidity of all known shank tools clamping systems, suitable for
HSC and HPC machining.
Technical information:
Replacement for conventional spring collets to increase concentricity, rigidity and
speed strength. Universal design for the adaptation of shank tools in machining
aggregates as well as direct clamping in spindles with integrated collet adaptor. For
clamping of carbide and steel shanks. Clamping eccentricity e ≤ 0.01 mm.
Attention: In order to mount the collet nut in the shrinked tool, the tool diameter is
not allowed to be larger than the collar diameter (DB) stated in the table. In individual
cases the existing clamping nut must be exchanged with the version stated in the
table.
