Planerhead HeliPlan with 4 edge HW turnblade knives Aluminium tool body, HSK 85 WS with reference cutterhead

Dimension: 15x15x2.5
Cutting Material Quality: HW

Name: Planerhead HeliPlan with 4 edge HW turnblade knives Aluminium tool body, HSK 85 WS with reference cutterhead
Brand: Leitz
SKU: phpw4ehtkatbh85wwrc
Price: 10000 USD
Availability: InStock

In stock

SKU

phpw4ehtkatbh85wwrc

Grouped product items
Product Name	Number of Knives	Dimension A	Rotation	Diameter	Maximum RPM	Cutting Width, in Millimeters unless inch symbol indicated	Number of Spurs	Number Of Teeth	Dimension	Cutting Material Quality	Dimensions	Quality
Leitz 132066 Planerhead HeliPlan with 4 edge HW turnblade knives $10,000.00 Attributes: Number of Knives: 40 Dimension A: 26 Rotation: bottom Diameter: 125 Maximum RPM: 12000 Cutting Width, in Millimeters unless inch symbol indicated: 236 Number of Spurs: 2 Number Of Teeth: 2/2	40	26	bottom	125	12000	236	2	2/2
Leitz 132065 Planerhead HeliPlan with 4 edge HW turnblade knives $3,804.85 Attributes: Number of Knives: 54 Dimension A: 26 Rotation: bottom Diameter: 125 Maximum RPM: 8000 Cutting Width, in Millimeters unless inch symbol indicated: 310 Number of Spurs: 2 Number Of Teeth: 2/2	54	26	bottom	125	8000	310	2	2/2
Leitz 009535 Planing cutter - Turnblade finishing cutter, Z 1 $4.20 Attributes: Dimension: 15x15x2.5 Cutting Material Quality: HW									15x15x2.5	HW
Leitz 602901 HeliPlan Cutterheads with 4 Edge HW Turnblade Knives $26.50 Attributes: Dimension: 15x15x2.5 Dimensions: 15 x 15 x 2.5 Cutting Material Quality: TDC Quality: TDC									15x15x2.5	TDC	15 x 15 x 2.5	TDC

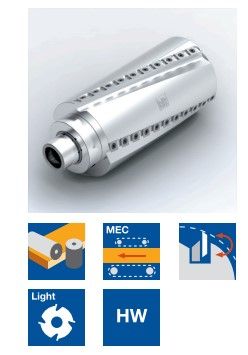

Leitz 007394 Copy shaping cutterhead - HeliCut 15 $5.90 Attributes:
Leitz 006091 Copy shaping cutterhead - HeliCut 15 $16.95 Attributes:
