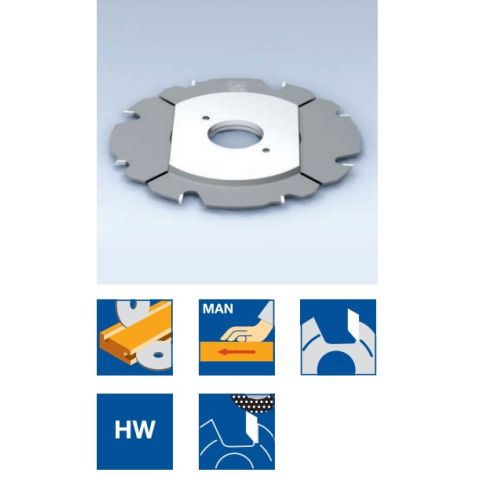

Grooving cutterset, adjustable with spacers2 part with spurs; SB 1.8 - 23.5 mm

In stock
SKU
Gcaws2ppwss12m
Grouped product items
Thumbnail Product Name Bore Diameter Bore Dia Max Diameter Minimum RPM Grooving Depth Cutting Width, in Millimeters unless inch symbol indicated Number of Spurs Number Of Teeth Qty Add to Cart
Leitz 020545 Grooving cutterset, adjustable with spacers
$417.70

Attributes:

  • Bore Diameter: 30
  • Bore Dia Max: 35
  • Diameter: 140
  • Minimum RPM: 5500 - 9500
  • Grooving Depth: 20
  • Cutting Width, in Millimeters unless inch symbol indicated: 1.8 - 3.4
  • Number of Spurs: 4
  • Number Of Teeth: 4

30

35

140

5500 - 9500

20

1.8 - 3.4

4

4
Leitz 020546 Grooving cutterset, adjustable with spacers
$417.70

Attributes:

  • Bore Diameter: 35
  • Bore Dia Max: 35
  • Diameter: 140
  • Minimum RPM: 5500 - 9500
  • Grooving Depth: 20
  • Cutting Width, in Millimeters unless inch symbol indicated: 1.8 - 3.4
  • Number of Spurs: 4
  • Number Of Teeth: 4

35

35

140

5500 - 9500

20

1.8 - 3.4

4

4
Leitz 020547 Grooving cutterset, adjustable with spacers
$10,000.00

Attributes:

  • Bore Diameter: 40
  • Bore Dia Max: 45
  • Diameter: 140
  • Minimum RPM: 5500 - 9500
  • Grooving Depth: 20
  • Cutting Width, in Millimeters unless inch symbol indicated: 1.8 - 3.4
  • Number of Spurs: 4
  • Number Of Teeth: 4

40

45

140

5500 - 9500

20

1.8 - 3.4

4

4
Leitz 020549 Grooving cutterset, adjustable with spacers
$442.45

Attributes:

  • Bore Diameter: 30
  • Bore Dia Max: 35
  • Diameter: 140
  • Minimum RPM: 5500 - 9500
  • Grooving Depth: 20
  • Cutting Width, in Millimeters unless inch symbol indicated: 2.2 - 4.0
  • Number of Spurs: 4
  • Number Of Teeth: 4

30

35

140

5500 - 9500

20

2.2 - 4.0

4

4
Leitz 020550 Grooving cutterset, adjustable with spacers
$442.45

Attributes:

  • Bore Diameter: 35
  • Bore Dia Max: 35
  • Diameter: 140
  • Minimum RPM: 5500 - 9500
  • Grooving Depth: 20
  • Cutting Width, in Millimeters unless inch symbol indicated: 2.2 - 4.0
  • Number of Spurs: 4
  • Number Of Teeth: 4

35

35

140

5500 - 9500

20

2.2 - 4.0

4

4
Leitz 020551 Grooving cutterset, adjustable with spacers
$442.45

Attributes:

  • Bore Diameter: 40
  • Bore Dia Max: 40
  • Diameter: 140
  • Minimum RPM: 5500 - 9500
  • Grooving Depth: 20
  • Cutting Width, in Millimeters unless inch symbol indicated: 2.2 - 4.0
  • Number of Spurs: 4
  • Number Of Teeth: 4

40

40

140

5500 - 9500

20

2.2 - 4.0

4

4
Leitz 020552 Grooving cutterset, adjustable with spacers
$442.45

Attributes:

  • Bore Diameter: 50
  • Bore Dia Max: 50
  • Diameter: 140
  • Minimum RPM: 5500 - 9500
  • Grooving Depth: 20
  • Cutting Width, in Millimeters unless inch symbol indicated: 2.2 - 4.0
  • Number of Spurs: 4
  • Number Of Teeth: 4

50

50

140

5500 - 9500

20

2.2 - 4.0

4

4
Leitz 020573 Grooving cutterset, adjustable with spacers
$470.25

Attributes:

  • Bore Diameter: 30
  • Bore Dia Max: 35
  • Diameter: 150
  • Minimum RPM: 5200 - 8900
  • Grooving Depth: 37.5
  • Cutting Width, in Millimeters unless inch symbol indicated: 4.0 - 7.5
  • Number of Spurs: 4
  • Number Of Teeth: 4

30

35

150

5200 - 8900

37.5

4.0 - 7.5

4

4
Leitz 020575 Grooving cutterset, adjustable with spacers
$470.25

Attributes:

  • Bore Diameter: 40
  • Bore Dia Max: 45
  • Diameter: 150
  • Minimum RPM: 5200 - 8900
  • Grooving Depth: 30
  • Cutting Width, in Millimeters unless inch symbol indicated: 4.0 - 7.5
  • Number of Spurs: 4
  • Number Of Teeth: 4

40

45

150

5200 - 8900

30

4.0 - 7.5

4

4
Leitz 020576 Grooving cutterset, adjustable with spacers
$470.25

Attributes:

  • Bore Diameter: 50
  • Bore Dia Max: 50
  • Diameter: 150
  • Minimum RPM: 5200 - 8900
  • Grooving Depth: 27.5
  • Cutting Width, in Millimeters unless inch symbol indicated: 4.0 - 7.5
  • Number of Spurs: 4
  • Number Of Teeth: 4

50

50

150

5200 - 8900

27.5

4.0 - 7.5

4

4
Leitz 020580 Grooving cutterset, adjustable with spacers
$525.45

Attributes:

  • Bore Diameter: 30
  • Bore Dia Max: 35
  • Diameter: 150
  • Minimum RPM: 5200 - 8900
  • Grooving Depth: 37.5
  • Cutting Width, in Millimeters unless inch symbol indicated: 7.5 - 14.5
  • Number of Spurs: 4
  • Number Of Teeth: 4

30

35

150

5200 - 8900

37.5

7.5 - 14.5

4

4
Leitz 020581 Grooving cutterset, adjustable with spacers
$525.45

Attributes:

  • Bore Diameter: 35
  • Bore Dia Max: 45
  • Diameter: 150
  • Minimum RPM: 5200 - 8900
  • Grooving Depth: 30
  • Cutting Width, in Millimeters unless inch symbol indicated: 7.5 - 14.5
  • Number of Spurs: 4
  • Number Of Teeth: 4

35

45

150

5200 - 8900

30

7.5 - 14.5

4

4
Leitz 020582 Grooving cutterset, adjustable with spacers
$525.45

Attributes:

  • Bore Diameter: 40
  • Bore Dia Max: 45
  • Diameter: 150
  • Minimum RPM: 5200 - 8900
  • Grooving Depth: 30
  • Cutting Width, in Millimeters unless inch symbol indicated: 7.5 - 14.5
  • Number of Spurs: 4
  • Number Of Teeth: 4

40

45

150

5200 - 8900

30

7.5 - 14.5

4

4
Leitz 020583 Grooving cutterset, adjustable with spacers
$525.45

Attributes:

  • Bore Diameter: 50
  • Bore Dia Max: 50
  • Diameter: 150
  • Minimum RPM: 5200 - 8900
  • Grooving Depth: 27.5
  • Cutting Width, in Millimeters unless inch symbol indicated: 7.5 - 14.5
  • Number of Spurs: 4
  • Number Of Teeth: 4

50

50

150

5200 - 8900

27.5

7.5 - 14.5

4

4
Leitz 020584 Grooving cutterset, adjustable with spacers
$612.75

Attributes:

  • Bore Diameter: 30
  • Bore Dia Max: 35
  • Diameter: 180
  • Minimum RPM: 4300 - 7400
  • Grooving Depth: 47
  • Cutting Width, in Millimeters unless inch symbol indicated: 6.0 - 11.5
  • Number of Spurs: 4
  • Number Of Teeth: 4

30

35

180

4300 - 7400

47

6.0 - 11.5

4

4
Leitz 020585 Grooving cutterset, adjustable with spacers
$689.40

Attributes:

  • Bore Diameter: 30
  • Bore Dia Max: 35
  • Diameter: 180
  • Minimum RPM: 4300 - 7400
  • Grooving Depth: 47
  • Cutting Width, in Millimeters unless inch symbol indicated: 12.0 - 23.5
  • Number of Spurs: 4
  • Number Of Teeth: 4

30

35

180

4300 - 7400

47

12.0 - 23.5

4

4
Leitz 020586 Grooving cutterset, adjustable with spacers
$763.10

Attributes:

  • Bore Diameter: 40
  • Bore Dia Max: 45
  • Diameter: 180
  • Minimum RPM: 4300 - 7400
  • Grooving Depth: 47
  • Cutting Width, in Millimeters unless inch symbol indicated: 12.0 - 23.5
  • Number of Spurs: 4
  • Number Of Teeth: 4

40

45

180

4300 - 7400

47

12.0 - 23.5

4

4

Application:
For cutting different groove widths.
Machine:
Spindle moulders, moulders, edgebanding machines and stationary routers
with/without CNC control, double-end tenoners.
Workpiece material:
Solid wood along grain and across grain; uncoated, coated and veneered wood
derived materials in top layer and middle layer.
Technical information:
Adjustment of cutting widths with spacers (adjustment 0.10 mm).
