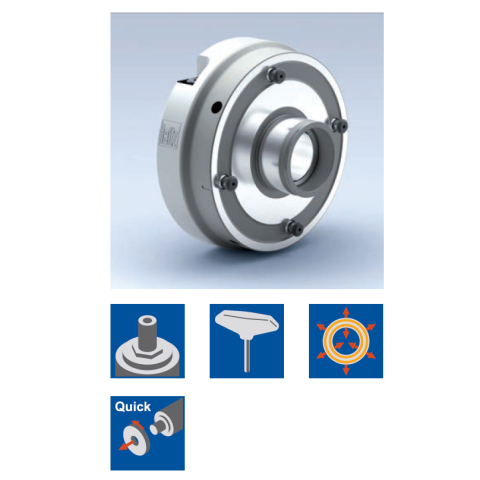

Leitz 150200 21 Spindle with safety device against twisting - hexagon HF spindle 40 Quick clamping sleeve type 160 Hydro-Duo

Application:
Quick clamping sleeve for tools and hoggers on high precision spindle D = 40 mm with hexagon safety device against twisting. Double acting hydro centering clamping eliminating the tolerance between spindle, clamping element and tool.
Machine: Double-end tenoners, edgebanding machines etc.
Technical information: Hardened steel tool body, with mechanical quick clamping mechanism without compressed air. Tool is mounted directly on the quick clamping system without intermediate flange, closed hydro clamping system with maintenance free pressure piston mechanism, suitable for right hand and left hand rotation. RPM nmax = 9000 min-1. Tools must have four bayonet holes on 130 mm pitch. Attention: Comply with maximum admissible speed for the mounted tools!h.
