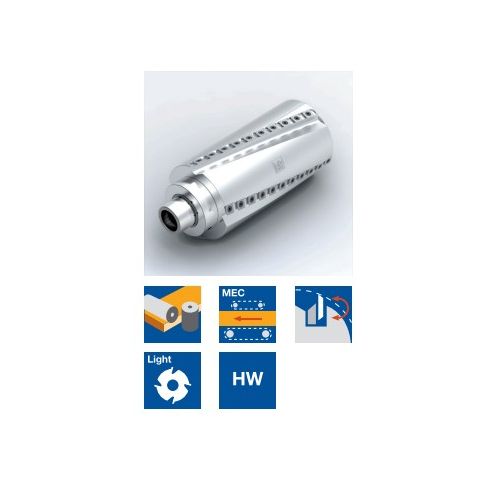

Leitz 30452 HeliPlan Cutterheads with 4 Edge HW Turnblade Knives
In stock
SKU
30452
$10,000.00
Application:
Pre-planing, surfacing and jointing all types of wood with large chip removal. Also
suitable for finish planing if quality demands are less important or in combination with
subsequent sanding.
Machine:
Four-sided moulders with HSK 85 WS interfaces.
Workpiece Material:
Softwood and hardwood.
Technical Information:
Pre-planing cutterhead with 4 edge HW turnblade knives. Low-noise and energy
efficient due to spiral, segmented edge arrangement. Smooth finish through
radiused cutting edges. Aluminum tool body. Tool and HSK are shrink-fit together.
Optional steel reference cutterhead for machines with fence.
| Cutting Width, in Millimeters unless inch symbol indicated | 210 |
|---|---|
| Number of Knives | 36 |
| Maximum RPM | 12000 |
| Maximum RPM | 12000 |
| Bore Diameter | 40 |
| Manufacturer | Leitz |
| Diameter | 125 |
| Number Of Teeth | 2/2 |
